External Upset EUE/EUT Thread Plug and Ring Gages
Helpful Tips
- Use the Go thread plug to check the minimum pitch diameter and the functional diameter of the internal thread. If the Go thread plug goes into the threaded hole smoothly and without force, then the product is usually considered acceptable.
- Use the NoGo thread plug to check the maximum pitch diameter and the functional diameter of the internal thread. If the NoGo thread plug does not enter the threaded hole more than three turns, then the product is usually considered acceptable.
- Use the ring gage to check the external thread of the tubing. The ring gage should be screwed onto the thread by hand until a slight drag is felt. If the ring gage goes on too easily or too tightly, then the product may be out of tolerance
- Use a certified master gage to calibrate the working gages before and after each use. The master gage should have a calibration report with stand-off dimensions from a NIST-traceable source.
- Use a thread lubricant to reduce friction and wear on the gages and the threads. The lubricant should be compatible with the material of the gages and the threads. It should not contain any abrasive or corrosive substances
- Use a gage cleaner to remove any dirt, oil, grease or metal chips from the gages and the threads before and after each use.
- Store the gages in a dry, clean and temperature-controlled environment. Protect the gages from dust, moisture, corrosion and mechanical damage. Use a protective case or a gage rack to store the gages safely.
| PART # | DESCRIPTION | PRICE |
| WPEUE/EUT-1-1/4-P | 1-1/4" EUE /EUT Plug Gage | call |
| WPEUE/EUT-1-1/4-R | 1-1/4" EUE/EUT Ring Gage | call |
| WPEUE/EUT-1.050-P | 1.050" EUE/EUT Plug Gage | call |
| WPEUE/EUT-1.050-R | 1.050" EUE/EUT Ring Gage | call |
| WPEUE/EUT-1.315-P | 1.315" EUE/EUT Plug Gage | call |
| WPEUE/EUT-1.315-R | 1.315" EUE/EUT Ring Gage | call |
| WPEUE/EUT-1.660-P | 1.660" EUE/EUT Plug Gage | call |
| WPEUE/EUT-1.660-R | 1.660" EUE/EUT Ring Gage | call |
| WPEUE/EUT-1.900-P | 1.900" EUE/EUT Plug Gage | call |
| WPEUE/EUT-1.900-R | 1.900" EUE/EUT Ring Gage | call |
| WPEUE/EUT-2-3/8-P | 2-3/8" EUE/EUT Plug Gage | call |
| WPEUE/EUT-2-3/8-R | 2-3/8" EUE/EUT Ring Gage | call |
| WPEUE/EUT-2-7/8-P | 2-7/8" EUE/EUT Plug Gage | call |
| WPEUE/EUT-2-7/8-R | 2-7/8" EUE/EUT Ring Gage | call |
| WPEUE/EUT-3-1/2-P | 3-1/2" EUE/EUT Plug Gage | call |
| WPEUE/EUT-3-1/2-R | 3-1/2" EUE/EUT Ring Gage | call |
| WPEUE/EUT-4-P | 4" EUE/EUT Plug Gage | call |
| WPEUE/EUT-4-R | 4" EUE/EUT Ring Gage | call |
| WPEUE/EUT-4-1/2-P | 4-1/2" EUE/EUT Plug Gage | call |
| WPEUE/EUT-4-1/2-R | 4-1/2" EUE/EUT Ring Gage | call |

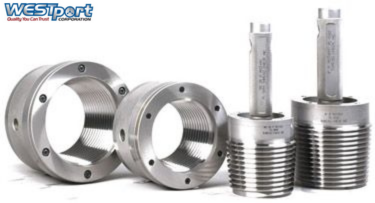

External Upset - EUE/EUT - Thread Plug and Ring Gages are used to measure the thread quality of tubing that is placed within a well and serves to produce or inject fluids. They are designed according to the API Spec 5B, which specifies the coupling threads, gauging practice and thread inspection requirements.
If you have any technical questions; our team of engineers has served on many different API gaging subcommittees with over 100 years of experience. We are here to assist you with any questions or special requirements you may have.
You can contact us at: 888-400-4243 with any questions or quoting you require or email your prints to quote@westportcorp.com.
